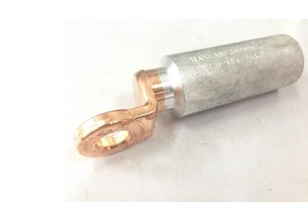

BIMETAL LUGS

Bimetallic lugs for aluminium
conductors
MV terminations
LV connection on busbar inside
electrical panel
The lugs is made of aluminium barrel
link to a copper palm by friction welding
technology
For external application, the aluminium
area should be protected against,
humidity
Accept cables according to NFC 32013
and IEC 228
To be crimped by deep stepped
indentation.

Product successfully added to the Quote List

Key Features & Capabilities

Range from 16 to 1600mm2
Friction welding technology
Crimped deep step indentation
Aluminium barrel and solid
copper palm
Compliance with specification
c33090-1, electrical test
performances in accordance with
NFC 63-081 Class A and IEC 1238-1
Class A
