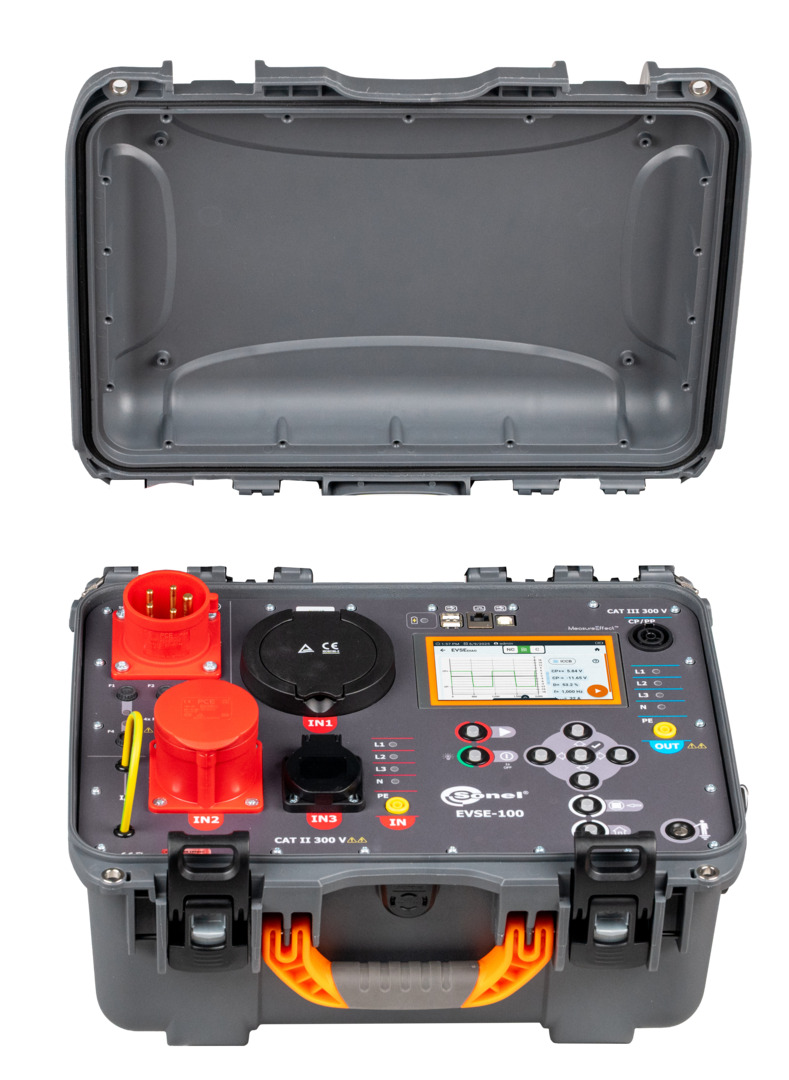

EVSE-100

MULTIFUNCTIONAL ANALYZER FOR ELETRIC VEHICLE CHARGING STATIONS
INDEX CAT. WMGBEVSE100
EAN 5907624019447

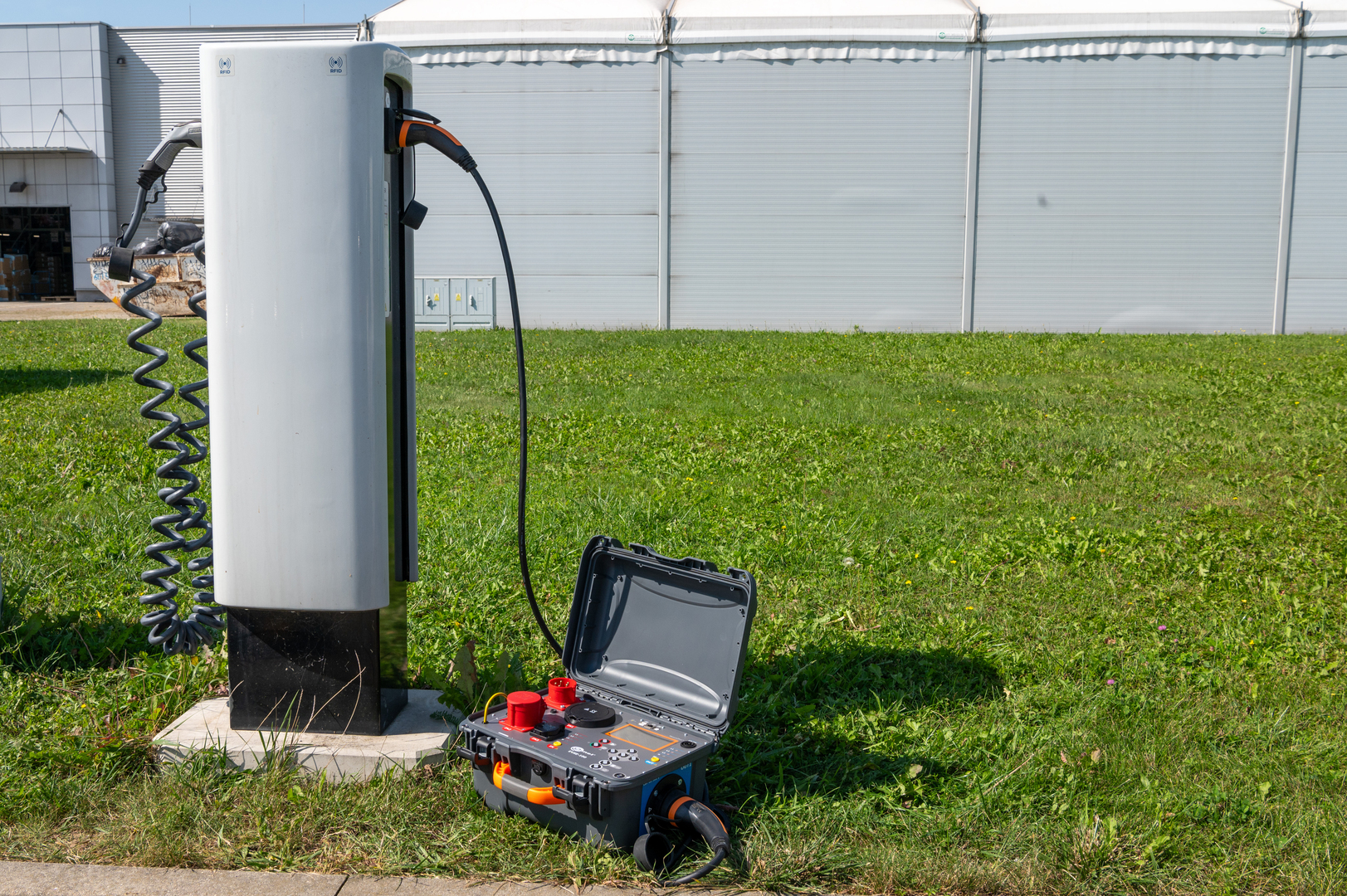

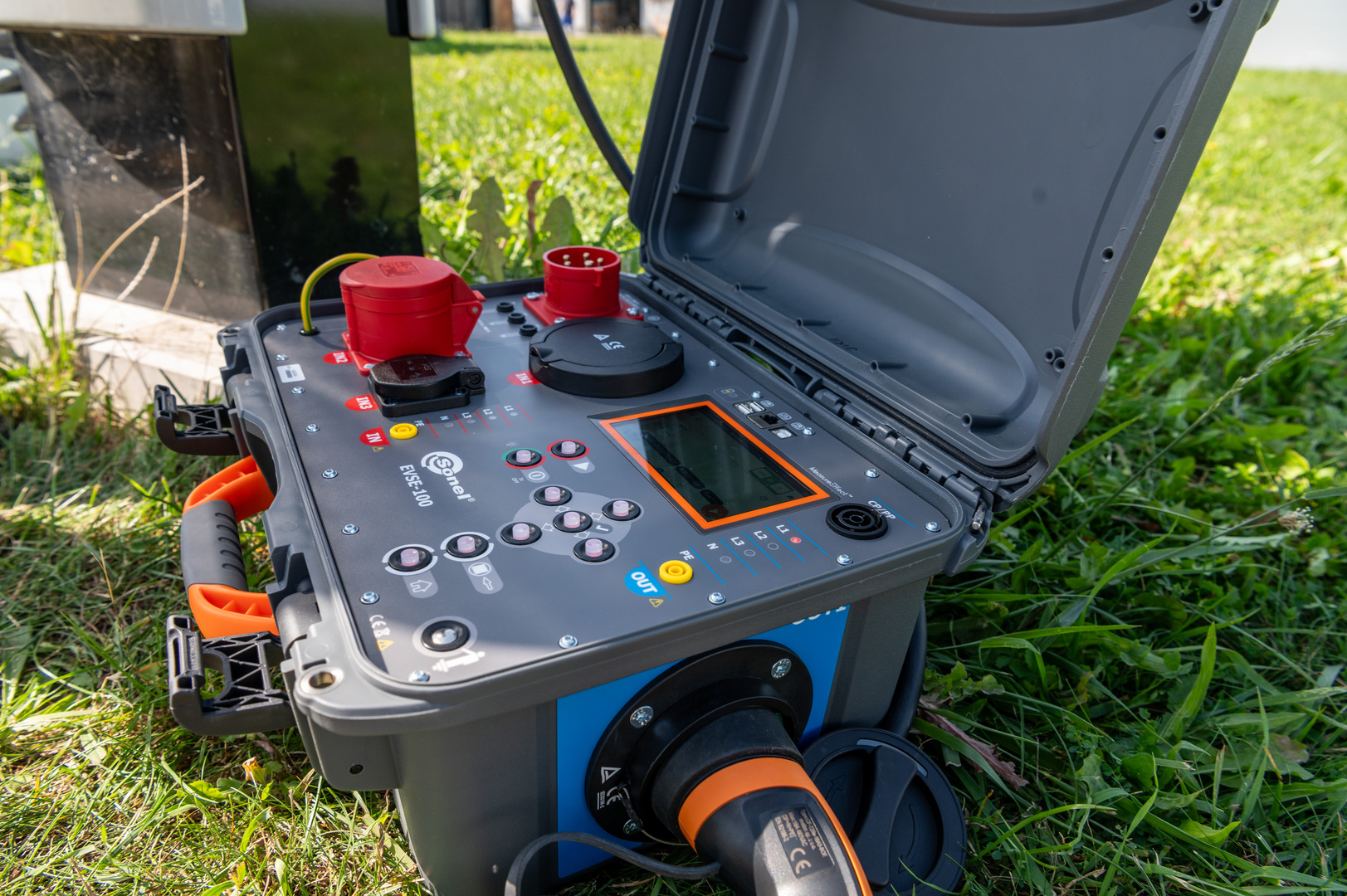

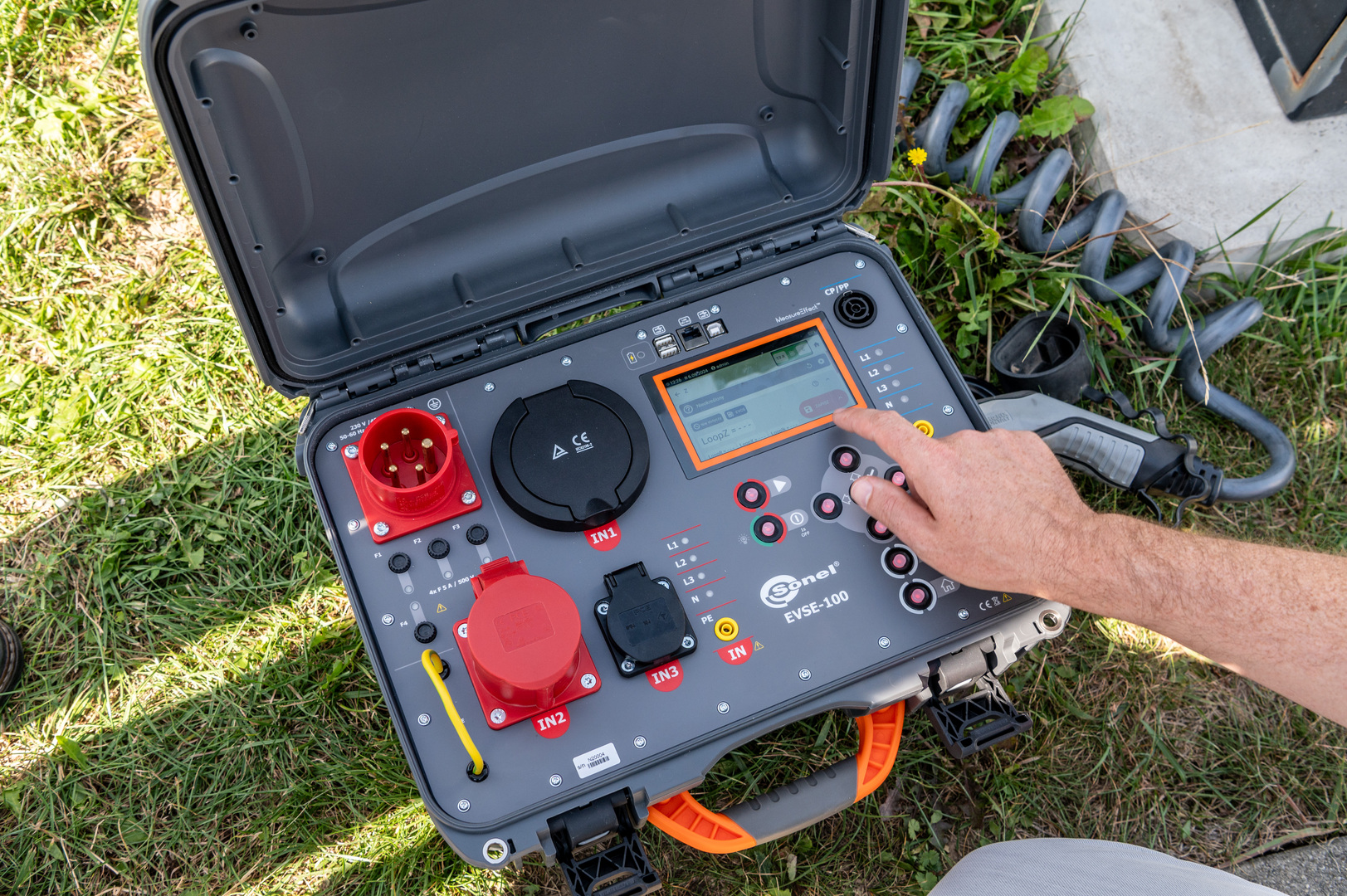

Multifunctional analyzer EVSE-100 is an instrument dedicated to diagnostics of electric vehicle charging stations and cables. Using a single device, we will perform a set of tests on these objects, ending with the generation of a professional report. Through appropriate simulation of CP and PP circuits, the meter can put the station into various operating states. This allows us to verify the correctness of the control system and perform measurements in the field of electric shock protection. We can complete the verification of functionality and safety by simulating errors on the power supply side, i.e. the charging station (ICCB), and charging side of the vehicle (CP circuit)

Key Features & Capabilities

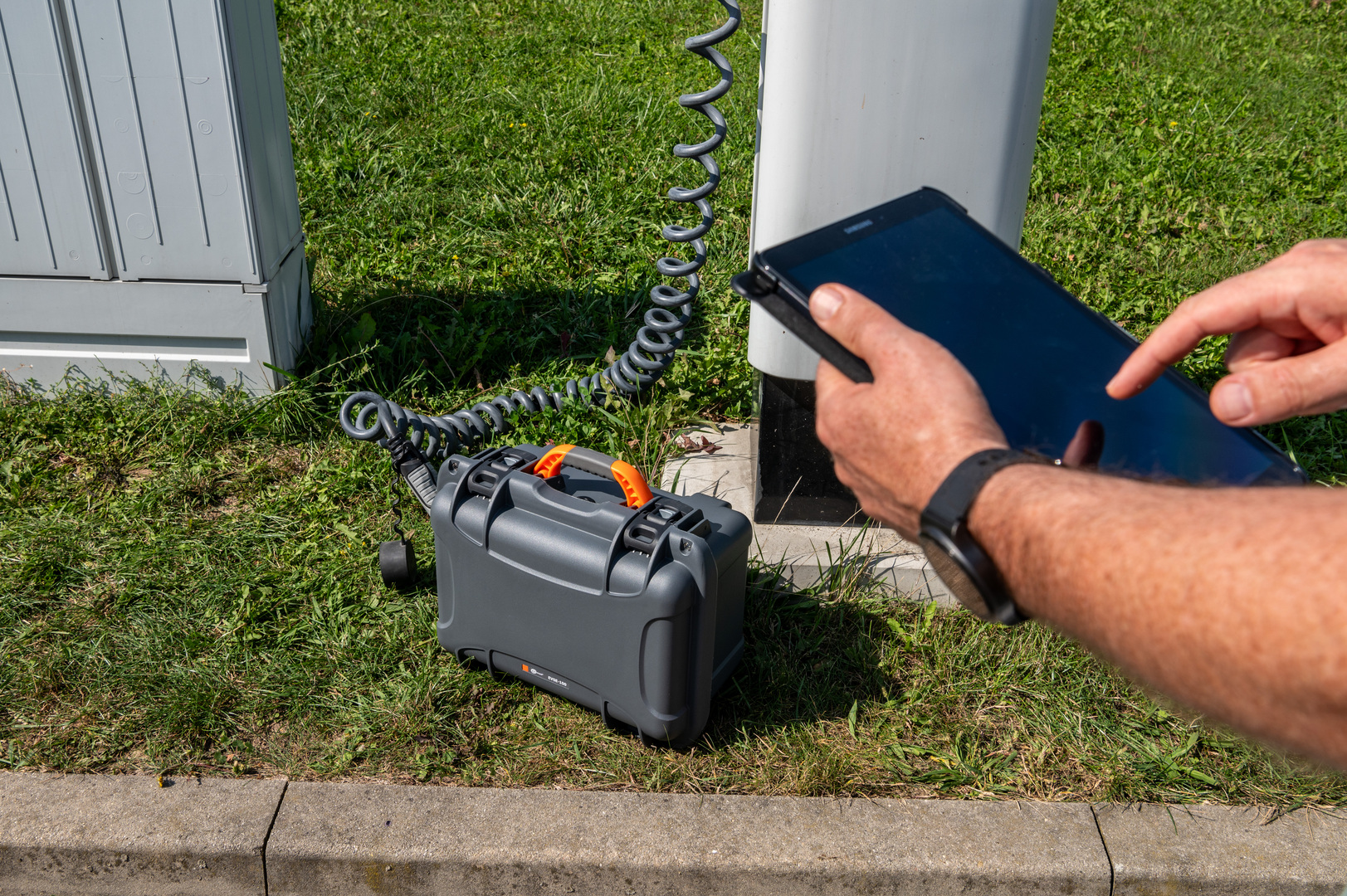

The meter is a part of the Sonel MeasureEffect™ platform. It is a comprehensive system that enables you to take measurements, store and manage data, and provides multi-level control of your instruments.

Applications

The meter makes it possible to carry out diagnostics on:

AC electric vehicle charging stations with type 2 connector with socket or fixed charging cable (1-phase and 3-phase),
portable electric vehicle charging stations with type 2 connector (1-phase and 3-phase),
charging cables.

Basic functions of the device

Simulation of PP cable parameters:
- open circuit,
- 13 A, 20 A, 32 A, 63 A, 80 A.
Simulation of CP communication:
- state A – vehicle not connected,
- state B – vehicle connected, not charging,
- state C – vehicle connected, charging without ventilation.
- state D – vehicle connected, charging with ventilation.
Safety measurements:
- measurement of short circuit loop Z,
- measurement of parameters of RCD circuit breakers (AC, A, B, 6 mA DC),
- measurement of insulation resistance R_ISO,
- measurement of R_CONT,
- phase sequence indication,
- resistance of coding resistor R_C,
- measurements of grounding R_E.
EVSE analysis – diagnostics:
- CP+, CP- voltage,
- frequency f (PWM),
- signal filling D (PWM),
- maximum charging current I_MAX,
- graph of CP+, CP-, f, D, I_MAX,
- t_off off time,
- t_on on time.
EVSE analysis – simulation of errors (ICCB, EVCS):
- CPsh – short circuit of CP to PE,
- Dsh – diode short circuit,
- PEop – interruption in PE.
EVSE analysis –s imulation of power supply circuit faults (ICCB):
- L1op – interruption in phase L1,
- L2op – interruption in phase L2,
- L3op – interruption in phase L3,
- Nop – interruption in N,
- PEop – interruption in PE,
- L↔PE – interchanged L and PE wires,
- U_EXT(PE) – voltage on PE wire.
EVSE analysis – transition time between states.

TECHNICAL DATA

Full Product Specifications

Parameters	EVSE-100
Ingress protection:	IP65
Measurement category:	CAT II 300 V, CAT III 300 V
Data transmission:	USB, WI-FI, bluetooth
Display:	LCD, touchscreen, color, backlit
Power supply:	Rechargeable battery, from mains
