Quadri*Sil Horizontal Line Post Insulator
Quadri*Sil Horizontal Line Post Insulator - Image 2
Quadri*Sil Horizontal Line Post Insulator - Image 3

Quadri*Sil Horizontal Line Post Insulator

Brand:OHIO BRASS
Catalog ID: P300042S0130

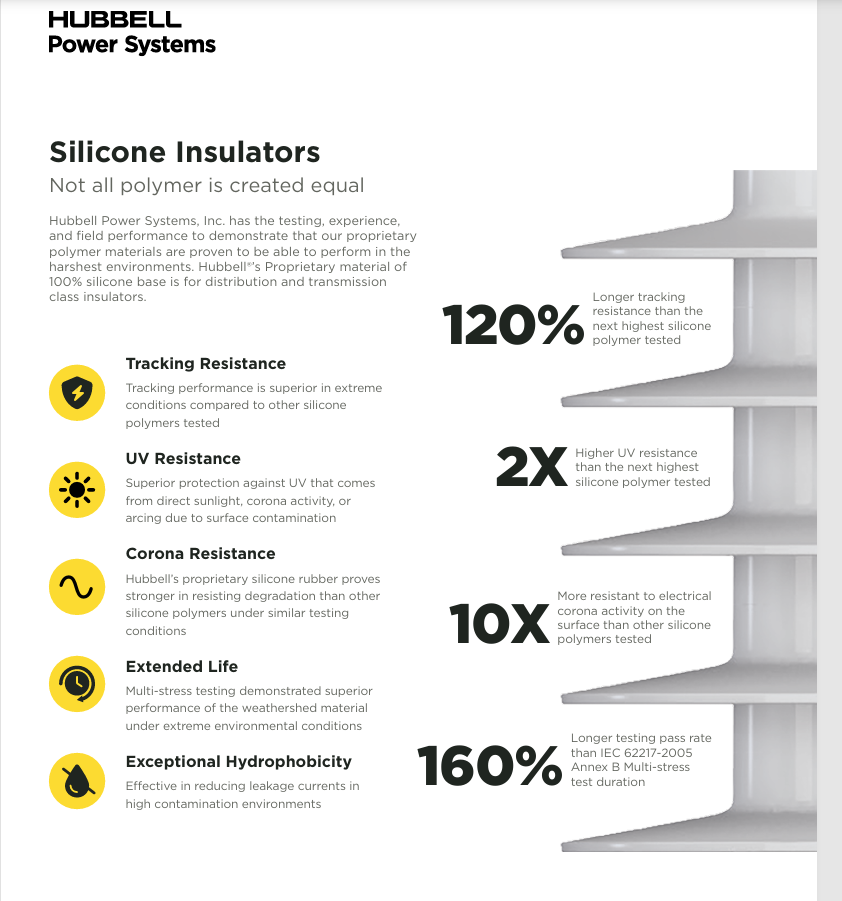

3″ Line Post, Standard Leak, Two Hole Blade, Steel Flat Base with 8″x10″ holes for 3/4″ bolts, 9″x13″ holes for 7/8″ bolts, and 14″ CL holes for 1″ bolts.The Quadri*Sil® transmission line post insulator embodies the latest in polymer insulator design that combines a patented revolutionary four-point sealing system together with electrical grade corrosion resistant direct draw fiberglass rod and proprietary silicone polymer to provide the highest quality, lab tested, and field proven insulator on the market with a 3″ core rod for increased mechanical strength.Made from hydrophobic silicone polymer

TECHNICAL DATA

Full Product Specifications

General


Cantilever Bending Strength – Max.5810 LB
Cantilever Bending Strength – Routine2905 LB
Catalog NumberP300042S0130
Fitting – Ground EndSteel Flat
Fitting – Live Line EndTear Drop Blade
Number of Sheds35
Shed StyleUniform
UPC096359867784

Dimensions


Angle14
Diameter – Shed(s)8.2
Length12 in
Length – Effective55 in
Rod Diameter3 in
Width9 in

Electrical Ratings


Arc Distance – Dry44.8 (1140MM)
Creep and Leakage Distance134 (3406MM)
Critical Impulse Flashover (CIFO) – Negative780
Critical Impulse Flashover (CIFO) – Positive685
Flashover Voltage – 60 Hz Dry440
Flashover Voltage – 60 Hz Wet400
Voltage Rating115 kV

Force Related


Cantilever Bending Strength – Max.5810 LB
Cantilever Bending Strength – Routine2905 LB

Configuration


Number of Sheds35
