LV Arrester
LV Arrester - Image 2
LV Arrester - Image 3

LV Arrester

low voltage power lines or junction boxes with voltages up to 1 kV



Low voltage metal oxide surge arresters with a silicone housing NNO and MOSPO are designed for installation in low voltage power lines or junction boxes with voltages up to 1 kV.They serve as the initial level of protection against surges and other transients. The varistors of low voltage surge arresters NNO and MOSIPO are directly molded by silicone rubber, providing them with a high level of ingress protection rated at IP 67.

IZOELEKTRO_catalogue-LV-Arrester-16-21

TECHNICAL DATA

Full Product Specifications

  • Brand : Izoelektro
  • Model : NNO, MOSIPO
  • Voltage levels: 275 V, 280 V, 360 V, 440 V, 690 V
  • Earthing conductor: H07V-K 6 mm2
  • Ambient temperature range: T = -60 °C … +85 °C
  • Ingress protection level: IP 67
  • Response time: tA < 25 ns
  • Housing: silicone rubber
  • Silicone colour: grey
  • IEC class: II
  • Tested according to standards: IEC 61643-1 and IEC 61643-11a

Related Products

Lv Dead End Clamp

View Specifications

lv Suspension Clamp

Suspension clamp PS 1500 is designed to suspend LV ABC with insulated neutral messenger of cross-section between 16 mm² and 71,5 mm². It is resistant to environmental and mechanical effects and UV radiation since it is made of material of high tensile strength and stable structure. Suspension clamp allowsturning angle of 30/60°. It is installed using no tools and does not contain parts which can fall off during installation.
View Specifications

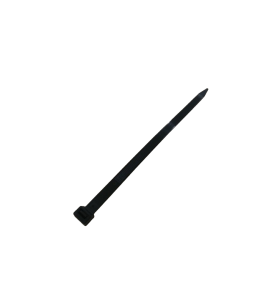

Nylon Cable Tie

Cable tie designed to secure the Aerial Bundled Cable. The usage is suitable for outdoor use. The material Nylon 66 is able to ensure the cable tie is weather resistant and UV light stabilized material. The cable tie is tested to hold the tensile strength up to 300N
View Specifications

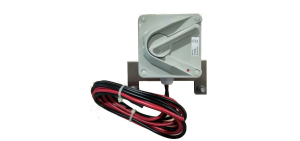

Mini Isolator Switch
