Circuit Breaker Dynamic Test System

HISAC Ultima – Circuit Breaker Dynamic Test System from SCOPE. The ultimate solution for testing Circuit Breakers of all types. HISAC Ultima is the complete analyser for checking the dynamic performance of circuit breakers in live EHV switchyards upto 765kV.HISAC Ultima can carry out Dynamic Contact Resistance Measurement on SIX breaks of THREE poles in one operation thereby significantly reducing stress on circuit breaker & testing downtime.It offers flexibility to create pre-programmed Test Plans including all test settings for all types of circuit breakers available in a switchyard that can simply be recalled at the time of actual testing. This saves you from doing all settings in switchyards.The analysis software offers a range of utilities which enables effective Condition Monitoring of circuit breaker by comparing present test data with previous test data and predicting future performance.
  • Tests all types of circuit breakers – LV, HV, EHV & UHV for all critical performance parameters of all the poles / breaks in a single shot
  • Measures Main & PIR contact timings, bounce, non simultaneity of contacts and auxiliary contact timings
  • Analyses contact travel characteristics for speed, insertion, contact gap, over-travel and rebound with suitable transducer and mounting fixture
  • Records trip and close coil current characteristics
  • Registers the signature of Dynamic Contact Resistance of main and arcing contacts, of all the 6 breaks simultaneously
  • Displays test settings, graphical and tabulated test results
  • Prints test report in graphical format with test header and calculation footer, on external optional printer
  • Incorporates powerful Windows based Test Manager Software to control & operate instrument; view, analyse and handle graphical test data on a laptop at high resolution
  • Selects pre-programmed setup parameters and pass/fail limits through software
  • Connects to circuit breaker with wear resistant test leads of adequate length, having quick-fit connectors, suitable for EHV circuit breakers

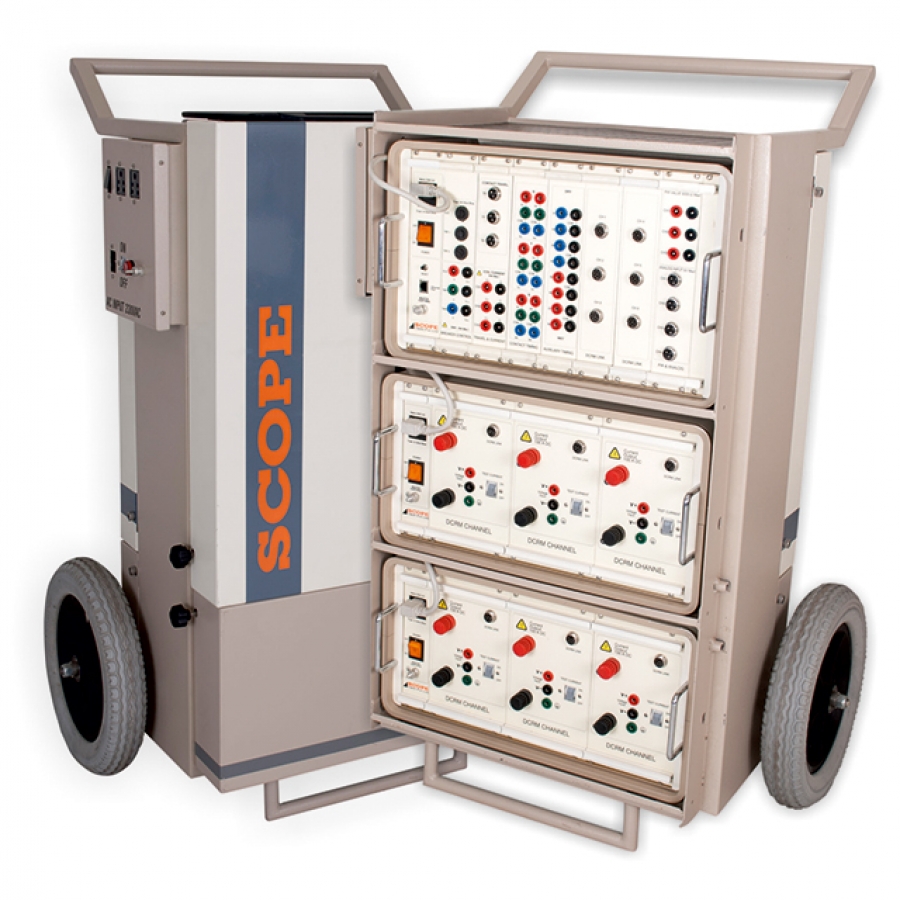

  • Moves easily within switchyard as the set can be mounted on a specially designed Trolley having large wheels & mains supply distribution board
  • Travel – For evaluating travel characteristics of operating mechanisms, SCOPE offers rotary and linear resistive travel transducers with universal / specially designed fixtures to suit a variety of CBs
  • DCRM module captures dynamic variation in contact resistance of main & arcing contacts during breaker operation
  • Each DCRM module has in built independent isolated, rechargeable battery based 100A DC source The result is plotted in graphical form on the software screen, which can be further analysed for finding parameters such as contact gap, total insertion, arcing tip insertion, main and arcing contact resistance values
  • Additional optional modules are available to measure PIR value and for monitoring Station DC (Coil voltage), Motor current or other static parameters through configurable Analog channels
  • Type Tested as per IEC 60068-2, IEC 61326-1 & IEC 61010-1. CE marked

TECHNICAL DATA

Full Product Specifications

ParametersHISAC Ultima
Trigger OptionsC, O, C-O, O-C, O-C-O
Contact Timing Channel24 : 4 Main + 4 PIR per pole, 3 pole simulta-

neously

Auxiliary Contact Timing

Channel

8 : 4 Dry + 4 Wet

Expandable up to 6 Dry + 6 Wet

Best Time Resolution50μS
Coil Current Channel3/6 : Trip / Close coil current
Travel Channel3/6 : Travel characteristic
Analog Channel for DCRM

Input (Optional)

1 / 2 / 3 / 6 – as per DCRM modules selected
DCRM Resistance Range &

Current (Optional)

1000 / 2000 / 4000 / 8000 μΩ Selectable,

Current 100A DC

Static Contact Resistance

(CRM) Channel

As per DCRM modules selected
CRM Resistance Range1000 / 2000 / 4000 / 8000 μΩ Selectable
Configurable Analog Channel

(Optional)

Up to 6 : For inputs of station battery voltage,

PIR value, motor current.

PIR value Measurement

(Optional)

0 – 5000Ω with the resolution of 1Ω
Sampling Speed1 / 2 / 5 / 10 / 20 kC Selectable
DisplayDisplay of laptop
OperationInteractive menu through laptop
Communication PortEthernet
PrinterExternal through laptop (Optional)
MemoryMemory of laptop
DimensionsHISAC Ultima – 500 x 270 x 300 mm,

DCRM Rack – 500 x 270 x 250 mm



Instrument Weight

HISAC Ultima – 12 kg Ultima DCRM Rack – 18 Kg

(3 DCRM modules per Rack)

Input Power110 V/230V AC ± 15%, 50/60 Hz ± 10%
