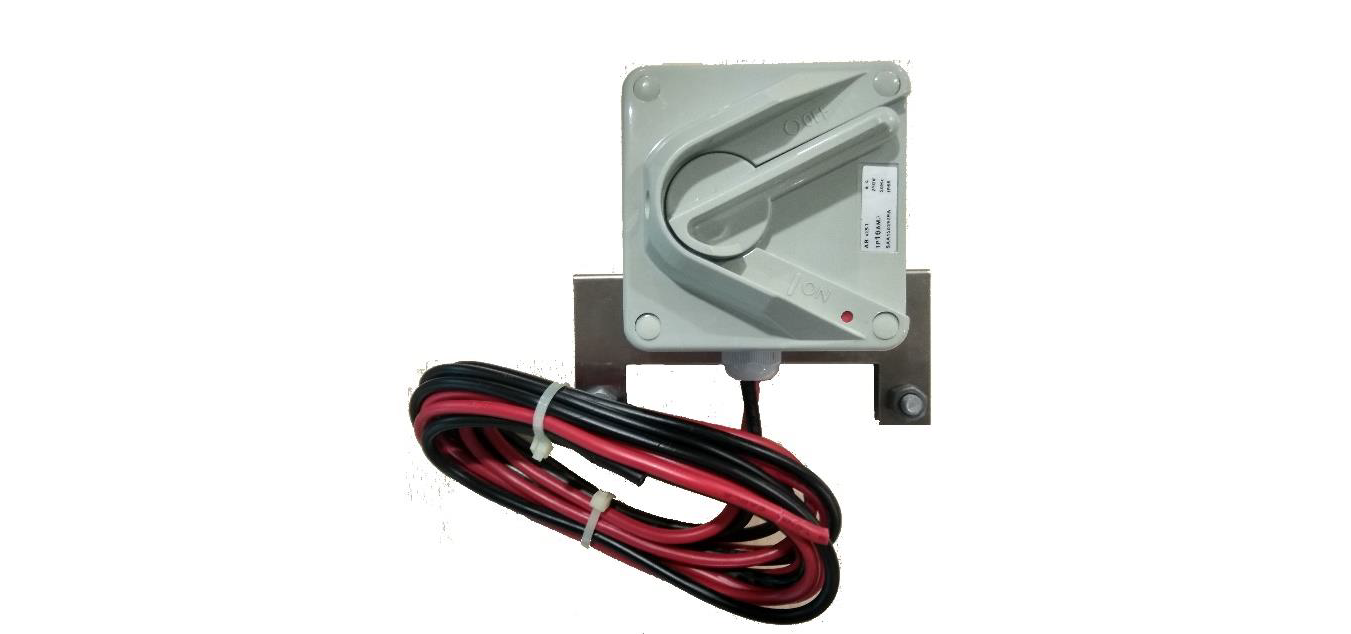

Mini Isolator Switch

Outdoor industrial grade switch
The isolating switch is intended for outdoor usage and suitable for TNB road lighting system especially during service and maintenance. This mini isolator is designed with prewired connecting cord load and line with capability of IP66.

TECHNICAL DATA

Full Product Specifications

  • Brand : Shamawar Elektrika
  • Model :
  • Enclosure material : UV resistant
  • Cable type : PVC/PVC Copper stranded 2.5 mm2
  • Rated voltage / frequency : 230 Vac / 50 Hz
  • Rated current : 16 A
  • Rated operating temperature : 70°C
  • Short circuit current rating : 5 kA, 1s
  • Protection against electric shock : Class II
  • IP rating : IP66
  • Cable length : 2.0 meters
  • Wire length : 1000 mm
  • Dimension (W x L x H) : 100mm x 103mm x 85mm
  • Complied Standard : KEJ05496:2014, IEC 60669-1, IEC 60529

Related Products

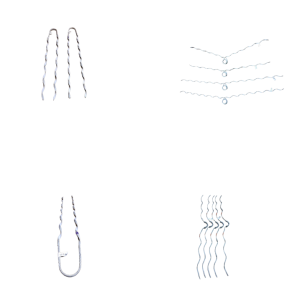

The helically preformed grip is used to hold/pull/tension the galvanized steel stay wire in the installation of the 33/22/11 kV overhead line systems such as pole and tower.
Our products have been used in the telecom and electrical industry since our inception in 1997. These products are still in operation since their installation, which reflects the quality and robustness of these products.We have local facility for metal stamping, shearing, punching, drilling, welding and assembly. Product coating used is hot dip galvanized that comply to BS EN 1461.For Telecommunication we have Eye bolt, clamp pole iron, clamp terminating , clamp pole concrete, clamp pole headring pole iron and pole concrete, thimble open small, stay rod set, stay plate, Hook clamp IB no 1 & no 2, Integral Bearer Clamp no 1 & no 2 and bridle ring

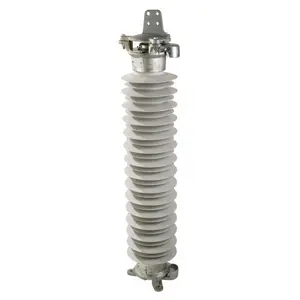

IEC Station Medium / High Quality Polymer Housed Hollow Core Surge Arrester
