Insulated Piercing Connector (IPC)
Insulated Piercing Connector (IPC) - Image 2
Insulated Piercing Connector (IPC) - Image 3
Insulated Piercing Connector (IPC) - Image 4

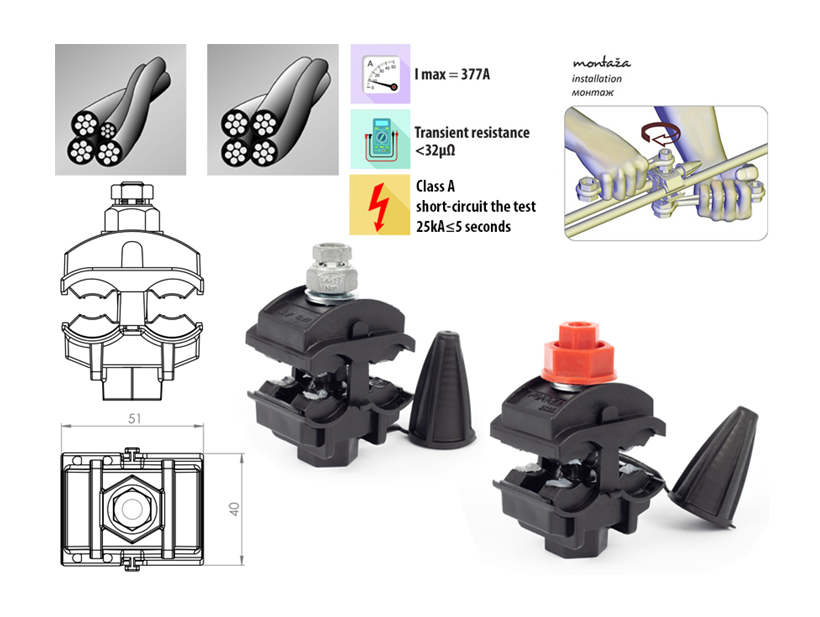

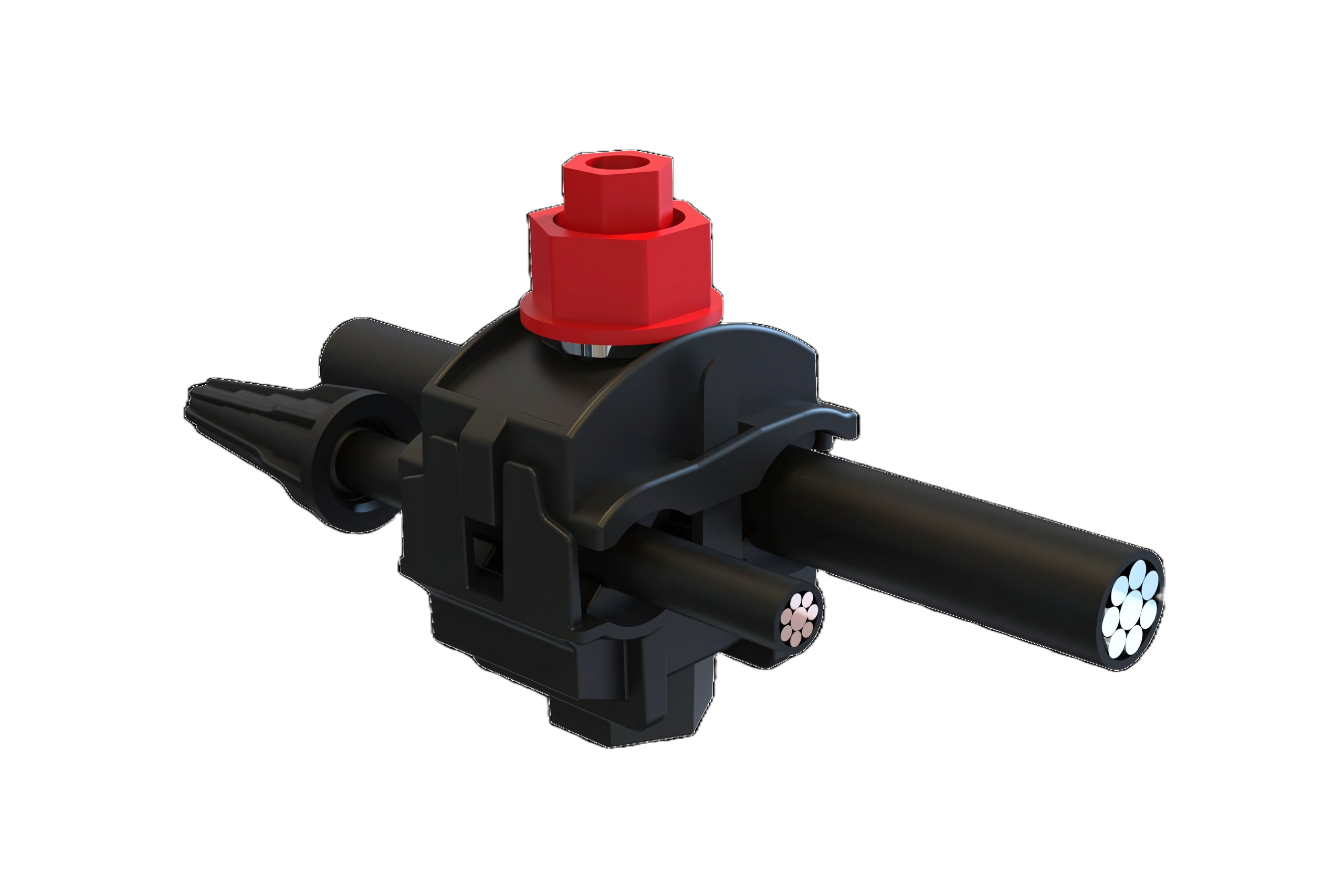

Insulated Piercing Connector (IPC)

For maintenance work on LV ABC conductors penetration

IPC is used for simultaneous penetration of insulation on LV ABC conductors and for connecting of conductors for street lighting. Connector is manufactured in such way that it enables connection of LV ABC and branch conductor regardless of whether it is an aluminum or copper conductor. The body of the connector is made of Heat and UV resistant plastic and the elastomer insert eliminates the appearance of electrolytic corrosion since it prevents the appearance of moisture at contact points. The contacts are protected with electric contact grease. Mounting under voltage is possible but with mandatory use of adequate protection equipment. Ring-spanner or tubular spanner.

TECHNICAL DATA

Full Product Specifications

BrandMarel
StandardEN 50483-4 / NFC 33 020

Related Products

lv Suspension Clamp

Suspension clamp PS 1500 is designed to suspend LV ABC with insulated neutral messenger of cross-section between 16 mm² and 71,5 mm². It is resistant to environmental and mechanical effects and UV radiation since it is made of material of high tensile strength and stable structure. Suspension clamp allowsturning angle of 30/60°. It is installed using no tools and does not contain parts which can fall off during installation.
View Specifications

Shackle & Stay Insulator

Shackle & Stay Insulator

An insulator that is used in distribution networks that works with low voltage is known as a shackle insulator. This insulator is also known as a spool insulator. These insulators can be worked in two positions like horizontal otherwise vertical.
View Specifications

Pole Accessories for Telecomunication and Electrical Distribution

Our products have been used in the telecom and electrical industry since our inception in 1997. These products are still in operation since their installation, which reflects the quality and robustness of these products.We have local facility for metal stamping, shearing, punching, drilling, welding and assembly. Product coating used is hot dip galvanized that comply to BS EN 1461.For Telecommunication we have Eye bolt, clamp pole iron, clamp terminating , clamp pole concrete, clamp pole headring pole iron and pole concrete, thimble open small, stay rod set, stay plate, Hook clamp IB no 1 & no 2, Integral Bearer Clamp no 1 & no 2 and bridle ring
View Specifications

MV Arrester

Hubbell offers both IEEE and IEC compliant distribution arrester products. The application may dictate the use of a different design to handle excessive lightning duty, high TOV or offer superior equipment protection.Distribution  arresters are commonly applied on system voltages from 3 – 46 kV. Use this guide to help select the correct arrester classification for your specific application. Other designs are available for unique applications.

IEC Class Station Medium Polymer Housed Surge Arrester

High quality solid-core station class arresters qualified to both IEEE and IEC arrester standards

  • PVI-LP arresters comply with the latest revision of IEC 60099-4
  • Long lasting ESPTM housing material with superior mechanical strength and electrical characteristics
  • Robust sealing system protects internal components from moisture ingress to extend service lifetime
  • High quality MOV discs made in Wadsworth, Ohio since 1978
View Specifications
